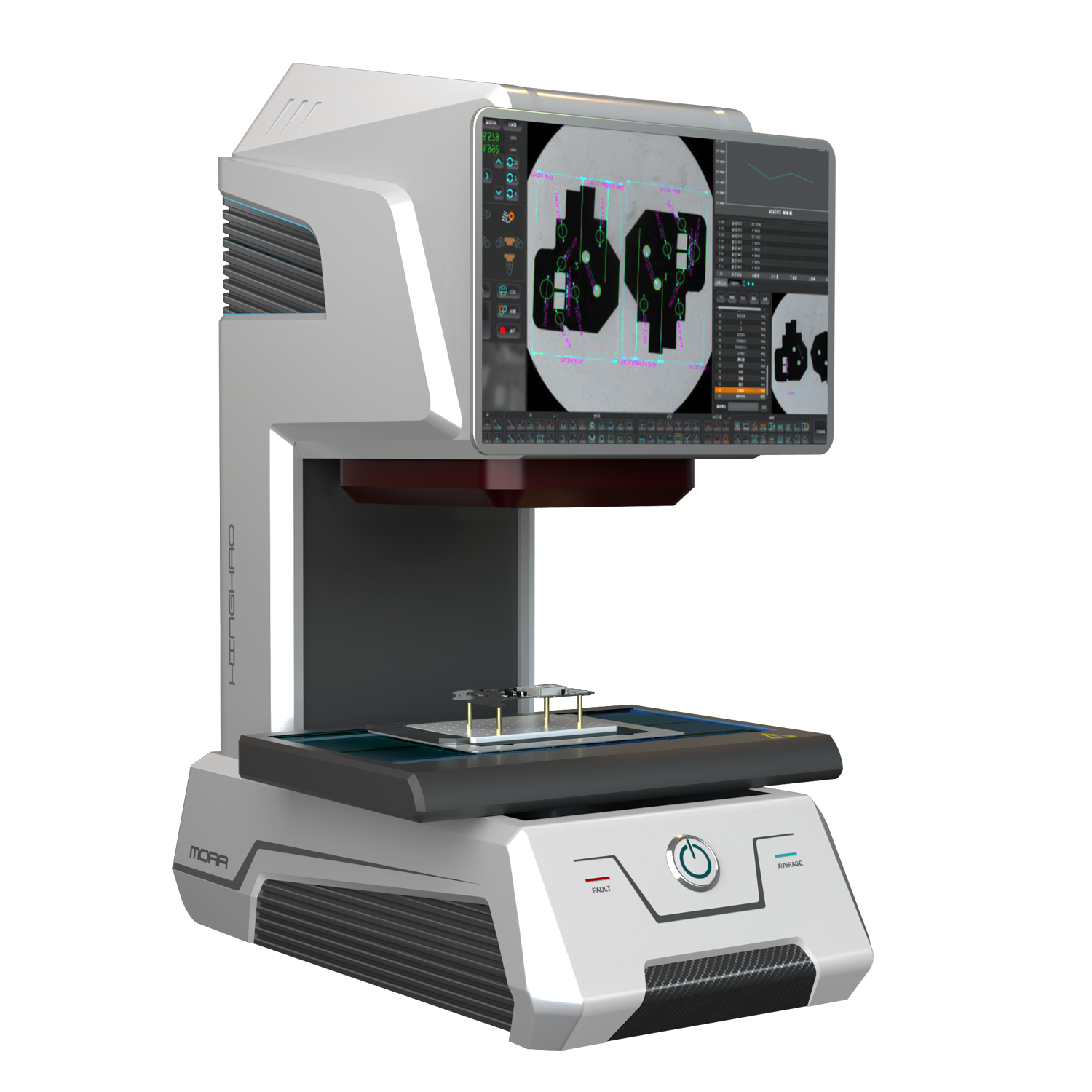

Focus-One / One-Click Measuring Instrument A
Product Overview
One-touch flash measurement for efficient batch inspection.
Key Features
● No workpiece positioning required; software automatically recognizes and matches templates.
● Simultaneous measurement of multiple features and targets.
● Supports CAD import for one-touch template matching and efficient batch measurement.
● One-click generation of measurement reports.
Key Parameters and Technical Specifications
| XY axis measuring range (mm) | 180*60*70 |
| Single field of view measurement range (mm) | 80*60 |
| External dimensions (mm) | 600*600*800 |
| Weight(kg) | 60 |
| Load-bearing(kg) | 15 |
| Image Sensor | 20 megapixel industrial camera |
| Lenses | Bi-telecentric optical lens |
| Magnification | 0.109X |
| Measuring accuracy (μm) | ±(3.0+L/200)* Taking the standard block as the product under test |
| Depth of field (mm) | 37 |
| Z axis working distance (mm) | 120mm |
| light source | 1000-level programmable light source |
| Contour light: telecentric parallel light source | |
| Surface light: Ring light source | |
| Work Environment | Temperature: 22℃±3℃ Humidity: 50~70% |
| Vibration: <0.002mm/s, <15Hz | |
| power supply | 220V/50Hz |
After-sales service
Provide professional and efficient after-sales service to ensure stable operation of equipment and customer satisfaction
