● Classic cross-table structure with independent Z-axis, ensuring high equipment precision.
● "Dovetail" guide structure with precision pre-loaded air bearings on all three axes, ensuring stable accuracy.
● Granite material for all three axes to enhance dimensional stability.
● Ball screw drive with flexible mechanism design provides sufficient driving force while minimizing errors.
● Encoder resolution ≤0.05μm, guaranteeing precise measurements.
● Integrated temperature-controlled protective enclosure for consistent accuracy in varying environmental conditions.
● Compatibility with multiple probe systems.
|
model |
Measuring range( mm) |
Resolution(μm) |
Indication error E(μm) |
Maximum load-bearing capacity of workbench (kg) |
Machine weight (kg) |
||
|
Dx |
Dy |
Dz |
|||||
|
Primus-HS 422 |
400 |
200 |
200 |
0.02 |
0.5+L/1000起 |
20 |
600 |
-
Primus-H686 and Above Series / MGH 686 and Above SeriesThe Primus-H 686 and above series / MGH 686 and above series 3D coordinate measuring machines (CMMs) are the latest generation AEH. Featuring a closed-frame precision mechanical structure designed using advanced international finite element analysis (FEA) technology, these machines are specially built for high-precision metrology. Composed of a fixed bridge and a moving worktable, the robust mechanical design ensures maximum rigidity, optimal stability, and minimal vibration—guaranteeing exceptionally high measurement accuracy across the entire measuring volume. -

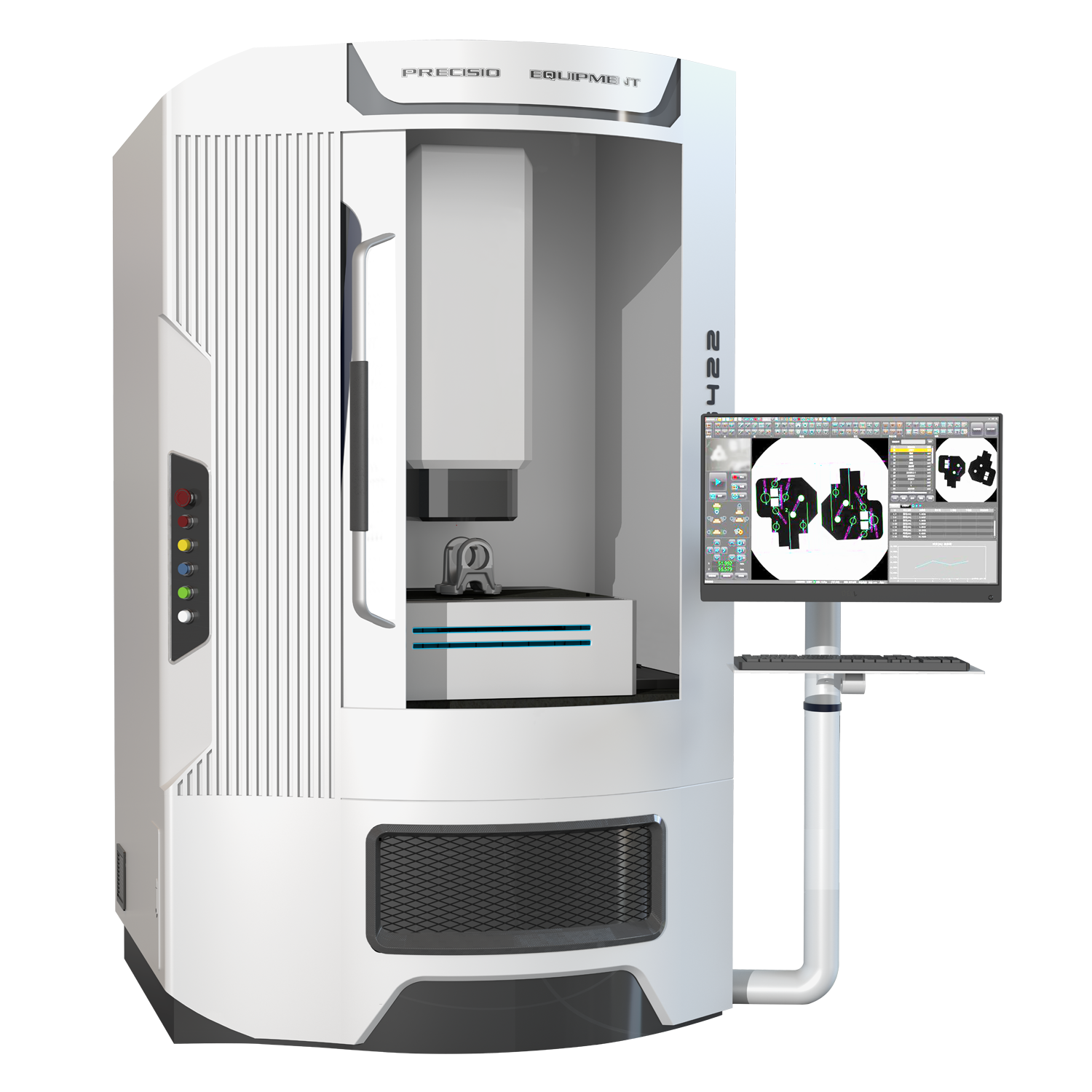

Primus-HS 422/GH 422
-
Primus-H 533/MGH 533Adopting a rigid fixed bridge structure, it has the advantages of high precision, high performance and high stability.
