The Perfect series optical measuring machines are fully automatic optical video measuring instruments featuring a moving cross-table structure with imported high-precision linear guides. The base is made of premium Tai Shan Qing granite, renowned for high dimensional stability and low sensitivity to external environmental influences. Combined with proprietary calibration software that holds full independent intellectual property rights, these machines ensure long-term measurement stability and extended trouble-free operation. This series is widely used across industries such as mold manufacturing, precision metalworking, mobile phone panels, glass, touchscreens, electrical and electronic components, and instrumentation.
● Fully automatic measurement with three-axis CNC closed-loop control system;
● Grade 00 granite base and column for quick setup and high stability;
● Integrated design of bottom support, electrical control system, and computer stand, plus bottom rollers for improved space utilization and short-distance mobility;
● Three axes equipped with high-precision linear guides and ball screw drive systems for smoother and more accurate motion;
● Imported optical encoder reading system for high resolution and precise positioning;
● Programmable 5-ring 8-zone annular surface light source, LED profile light, and coaxial light;
● Automatic focus height measurement, motorized zoom optical lens, with optiona RENISHAW contact MCP probe and point laser scanning probe.
| model | perfect322 | perfect342 | perfect542 | |
| Measuring stroke（mm） | 300*200*200 | 300*400*200 | 500*400*200 | |
| Dimensions（mm） | 1230*1135*1820 | 1230*1535*1820 | 1530*1535*1820 | |
| weight（kg） | 362 | 420 | 490 | |
| Load-bearing（kg） | 15 | |||
| Grating ruler | 0.5um Grating ruler | |||
| Indication error (um) | Optics | 1.9+L/200 | 2.0+L/200 | 2.5+L/200 |
| Trigger | 4.0+L/200 | |||
| Image Sensor | High-definition color industrial camera | |||
| Objective | 6.5:1 manual zoom lens (0.7X-4.5X) | |||
| Comprehensive magnification | 62X-400X | |||
| Lighting system | Rim Light | Programmable LED cold light source, 256 levels of brightness adjustable | ||
| Falling light | Programmable 4-ring 8-zone LED cold light source, 256 levels of brightness adjustable | |||
| Coaxial light | Programmable LED cold light source, 256 levels of brightness adjustable | |||
| Running speed（mm/s） | XY | 200 | ||
| Z | 100 | |||
| Work Environment | Verification temperature (20±2℃)/24h, temperature change rate <0.5℃/h, temperature gradient <0.5℃/m | |||
| Working power supply | 220V 50Hz 1KVA | |||
| Air source requirements | none | |||
-

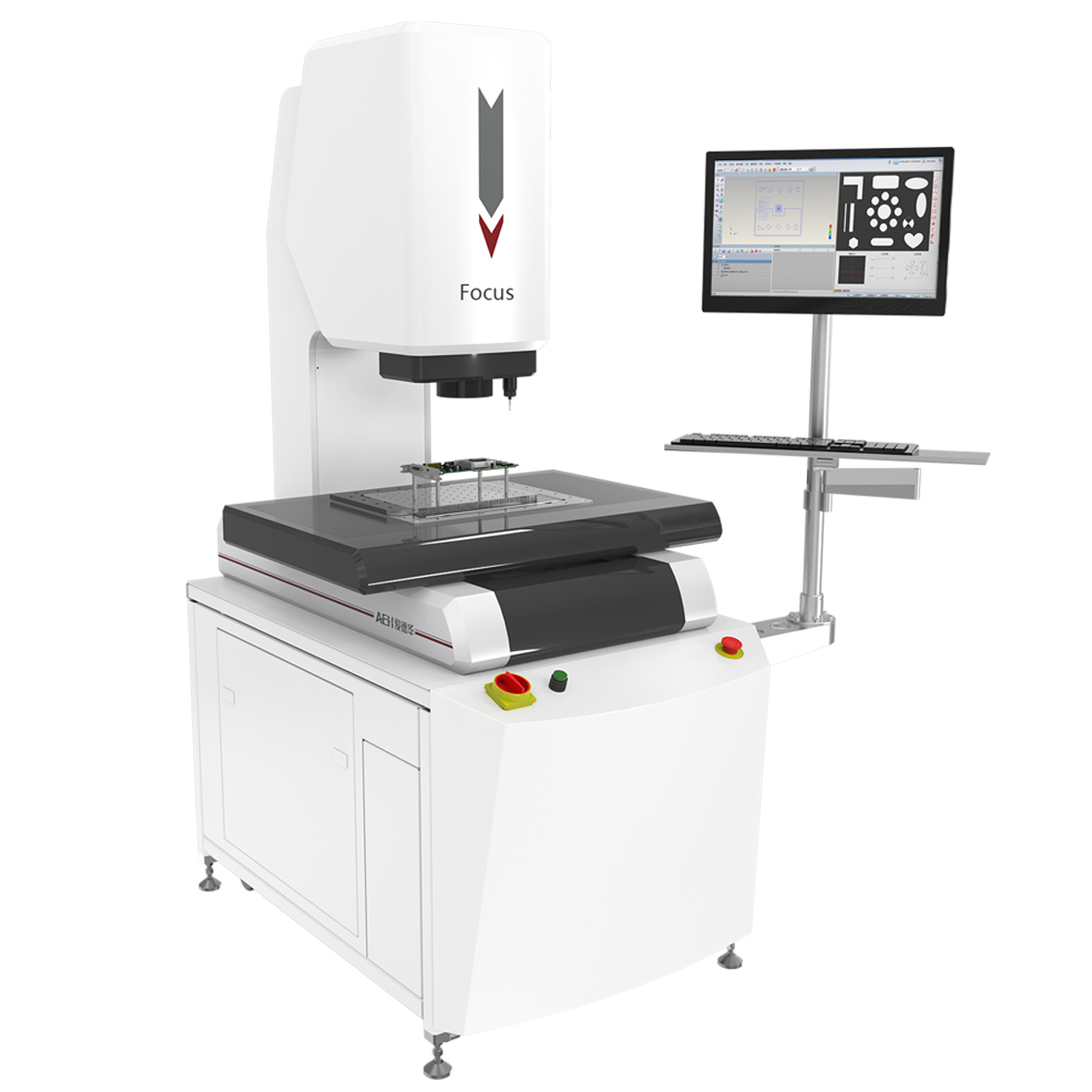

Focus Series / Perfect SeriesThe Perfect series optical measuring machines are fully automatic optical video measuring instruments featuring a moving cross-table structure with imported high-precision linear guides. The base is made of premium Tai Shan Qing granite, renowned for high dimensional stability and low sensitivity to external environmental influences. Combined with proprietary calibration software that holds full independent intellectual property rights, these machines ensure long-term measurement stability and extended trouble-free operation. This series is widely used across industries such as mold manufacturing, precision metalworking, mobile phone panels, glass, touchscreens, electrical and electronic components, and instrumentation.
-
FocusL Series / PerfectL SeriesGantry-type moving structure (Y-axis gantry movement) for high precision, rigidity, and stability; Three axes driven by precision ball screws, featuring high rigidity, minimal backlash, and superior transmission accuracy;
