● Gantry-type moving structure (Y-axis gantry movement) for high precision, rigidity, and stability;
● Three axes driven by precision ball screws, featuring high rigidity, minimal backlash, and superior transmission accuracy;
● Three-axis structure combining high-quality granite and air-bearing guides, with low thermal expansion coefficient, high guiding accuracy, and smooth motion to meet high-precision measurement requirements;
● X-axis guide rail uses a horizontally placed rectangular beam to ensure Y-axis rigidity of the crossbeam;
● Z-axis employs a patented air-bearing sleeve structure with minimal offset torque for stable motion;
● Bottom light driven by high-strength Kevlar twisted wire for synchronized, jitter-free operation without wire breakage or skipping;
● Equipped with 5-ring 8-zone annular light, profile light, coaxial light, and a controllable lighting system for intelligent brightness adjustment;
● Optional manual/motorized zoom lenses, fixed-magnification telecentric lenses, and other optical configurations;
● Compatible with MCP trigger probes for contact measurement;
● Optional accessories including standard fixtures, optical calibration tools, and rotary tables for measurement and calibration.
| model | perfect L562 | perfect L682 | perfect L8102 | |
| Measuring stroke（mm） | 500*600*200 | 600*800*200 | 800*1000*200 | |
| Dimensions（mm） | 1401*1912*1900 | 1501*2112*1900 | 1701*2360*1900 | |
| weight（kg） | 1650 | 2000 | 2550 | |
| Load-bearing（kg） | 30 | |||
| Grating ruler | 0.1um Grating ruler | |||
| Indication error（um） | Optics | 1.6+L/200 | 1.8+L/200 | |
| Trigger | 1.9+L/200 | |||
| Image Sensor | High-definition color industrial camera | |||
| Objective | 6.5:1 automatic zoom lens (0.7X-4.5X) | |||
| Comprehensive magnification | 62X-400X | |||
| Lighting system | Rim Light | Programmable LED cold light source, 256 levels of brightness adjustable | ||
| Falling light | Programmable 5-ring 8-zone LED cold light source, 256 levels of brightness adjustable | |||
| Coaxial light | Programmable LED cold light source, 256 levels of brightness adjustable | |||
| Running speed (mm/s) | XY | 500 | ||
| Z | 200 | |||
| Work Environment | Verification temperature (20±1℃)/24h, temperature change rate <0.5℃/h, temperature gradient <0.5℃/m | |||
| Working power supply | 220V 50Hz 1KVA | |||
| Air source requirements | Gas supply pressure: >0.6MP, gas consumption: 50L/min | |||
-

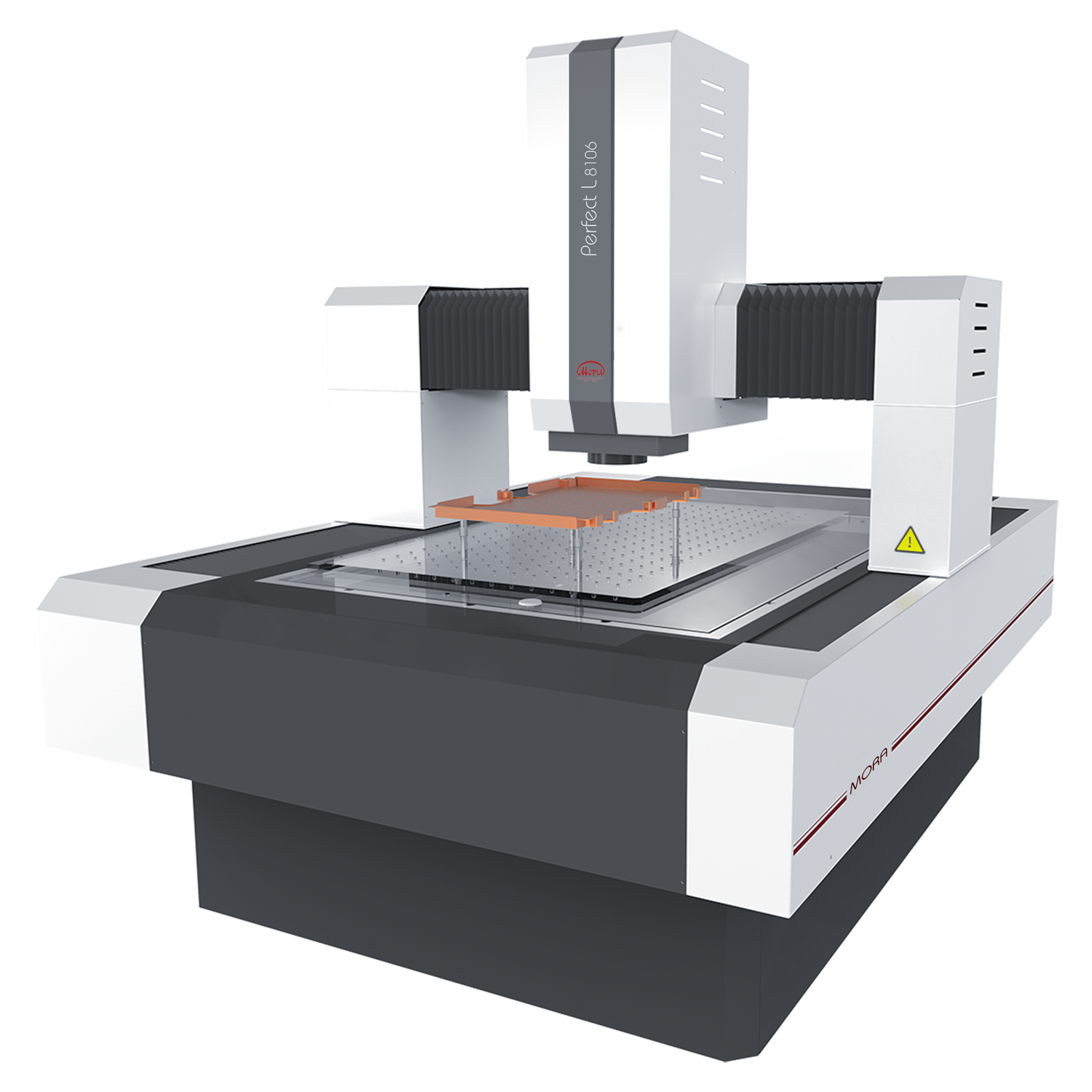

FocusL Series / PerfectL SeriesGantry-type moving structure (Y-axis gantry movement) for high precision, rigidity, and stability; Three axes driven by precision ball screws, featuring high rigidity, minimal backlash, and superior transmission accuracy;
-

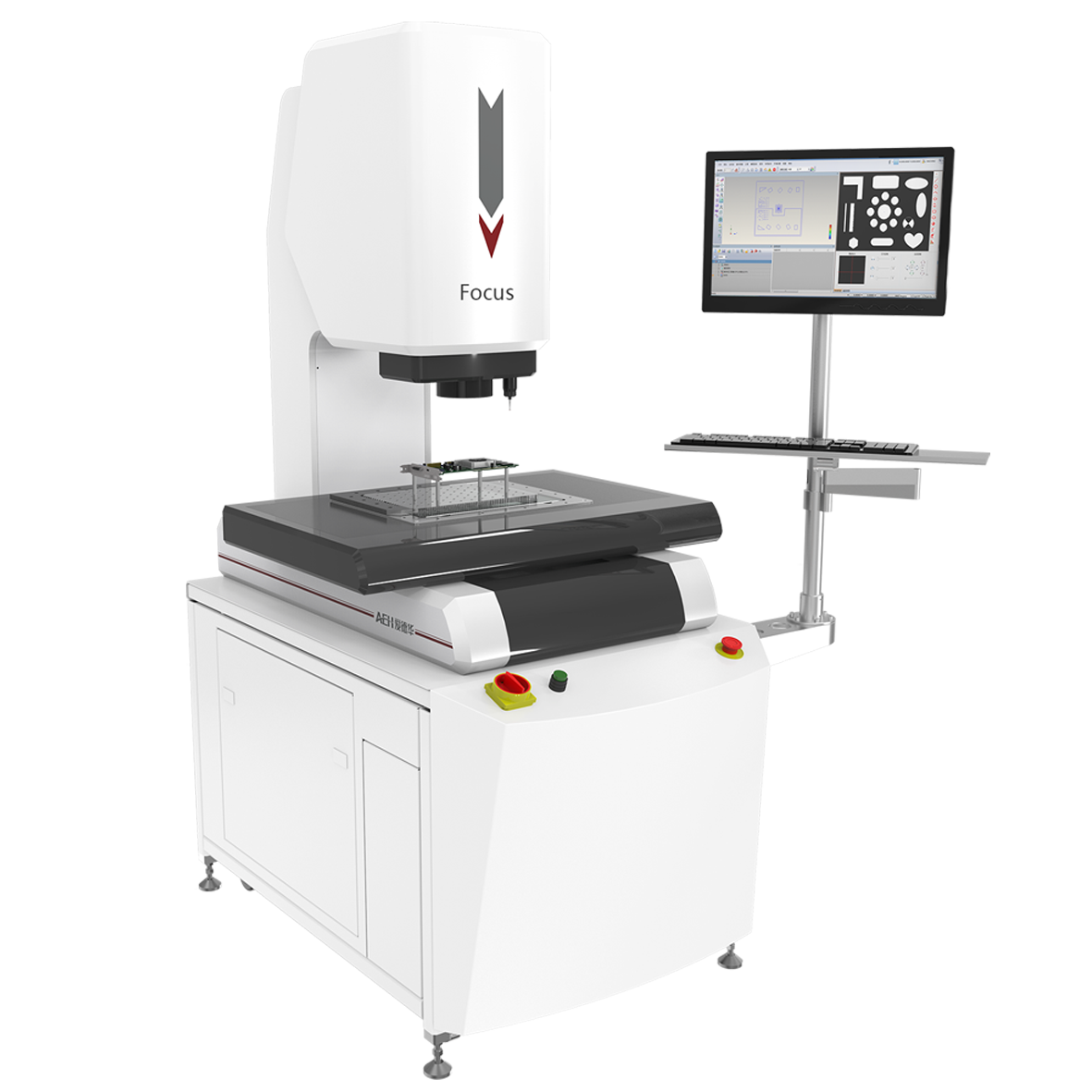

Focus Series / Perfect SeriesThe Perfect series optical measuring machines are fully automatic optical video measuring instruments featuring a moving cross-table structure with imported high-precision linear guides. The base is made of premium Tai Shan Qing granite, renowned for high dimensional stability and low sensitivity to external environmental influences. Combined with proprietary calibration software that holds full independent intellectual property rights, these machines ensure long-term measurement stability and extended trouble-free operation. This series is widely used across industries such as mold manufacturing, precision metalworking, mobile phone panels, glass, touchscreens, electrical and electronic components, and instrumentation.
