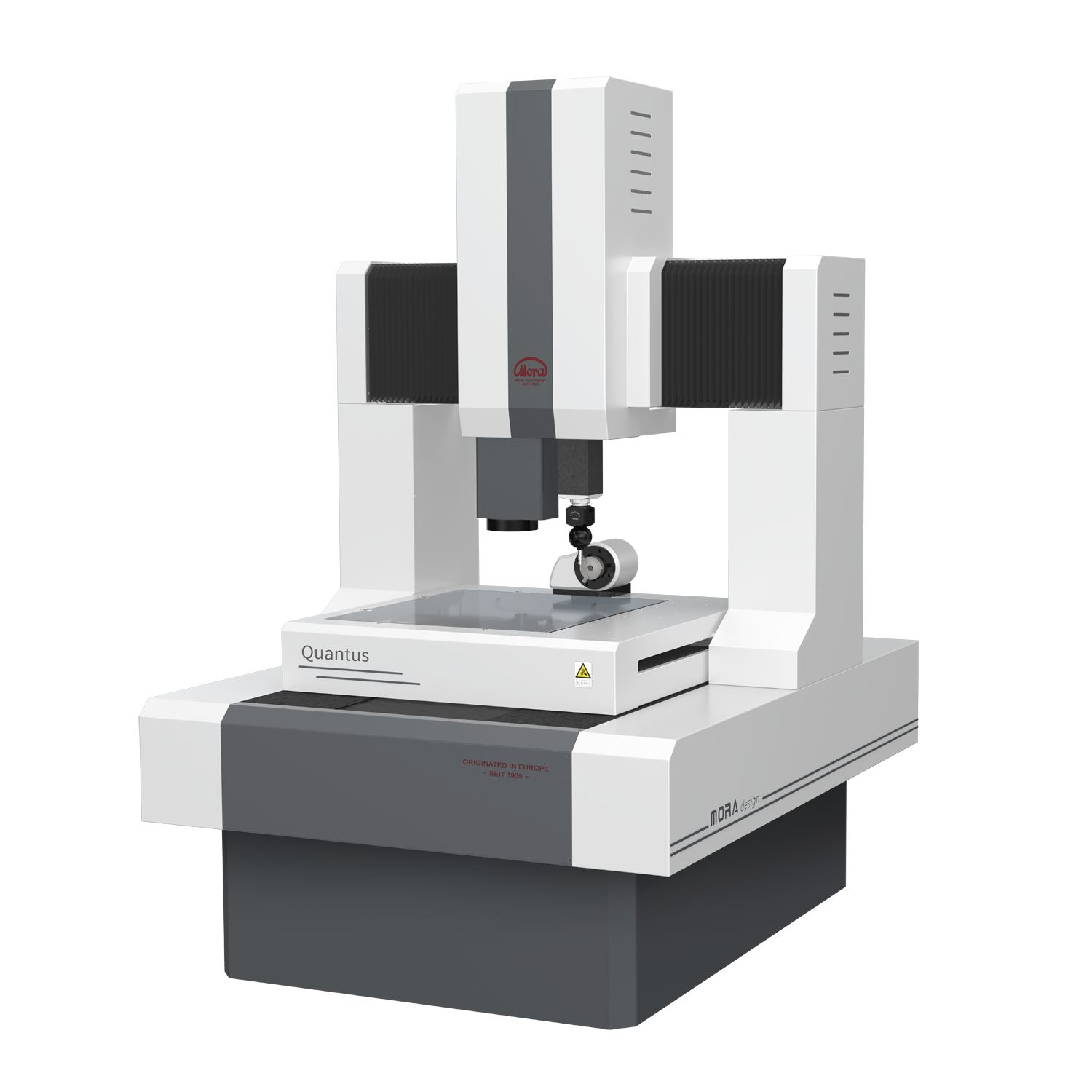

Dual-Z-axis design facilitates multi-sensor combinations (e.g., touch probes, optical sensors) to measure workpieces within a single coordinate system.
● High-precision fixed-bridge structure for stability and rigidity.
● Four-axis precision ball screw drives minimize backlash and ensure transmission accuracy.
● Granite air-bearing guides with low thermal expansion and high precision.
● Y-axis dovetail-type air-floating guides enhance torsional resistance in X/Z directions.
● Patented Z-axis air-floating sleeve structure reduces offset torque for smooth motion.
● High-precision imported slot-type grating scales.
● Intelligent 5-ring, 8-zone RGB annular lighting, contour lighting, and coaxial lighting with adaptive brightness control.
| Axis | X/Width | Y/long | Z/high |
| From | 500 | 400 | 300 |
| Arrive | 1000 | 600 | 400 |
Accuracy: XYE2=0.8+L/500 onwards ZE1=0.9+L/500 onwards
The accuracy shown here is obtained at the minimum measuring range and an ambient temperature of 20°C.
Special sizes and special accuracies can also be achieved according to customer requirements.
