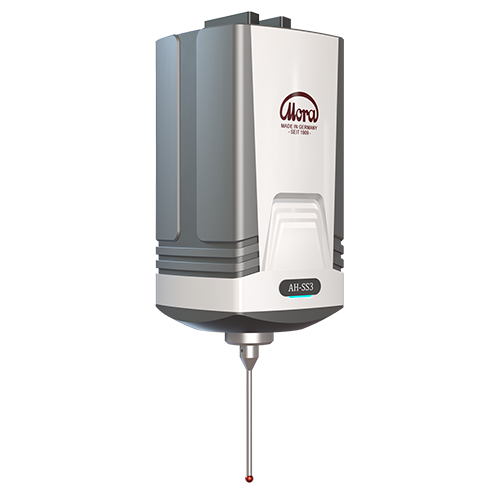

AH-SS3 3D Analog Scanning Probe
Product Overview
AH-SS3 is a compact, reliable, high-precision scanning probe that can move linearly and horizontally in all axes. The 3D scanning probe uses analog sensors in all coordinate directions, with a large range, fast speed and long life. The probe replacement plate has a dual-stable magnetic protection system, which is easy to clamp and has reliable collision protection. It is durable and the robust design can withstand minor collisions.
Key Parameters and Technical Specifications
| Type | Fixed contact-based high-speed 3D scanning probe |
| Probe Travel | ±1.5 mm on all three axes |
| Resolution | 0.1 μm |
| Force Coefficient | 1 N/mm |
| Probe | Stylus Thread: M3 |
| Max. Stylus Length: 300 mm | |
| Max. Stylus Weight: 30 g | |
| Mounting Method | Spindle face mounting |
| Orientation | Vertical operation |
| Electrical Connection | 15-pin DB connector |
| Status Indicator | 1 LED |
| Operating Temperature | +10°C to +40°C |
| Storage Temperature | -10°C to +50°C |
| Service Life | ≥10,000 hours |
| Dimensions | 58 mm × 58 mm × 118 mm |
| Weight | 400 g |
| Replacement Options | ACD3 exchange module, ARS holderDimensions reference diagram |
