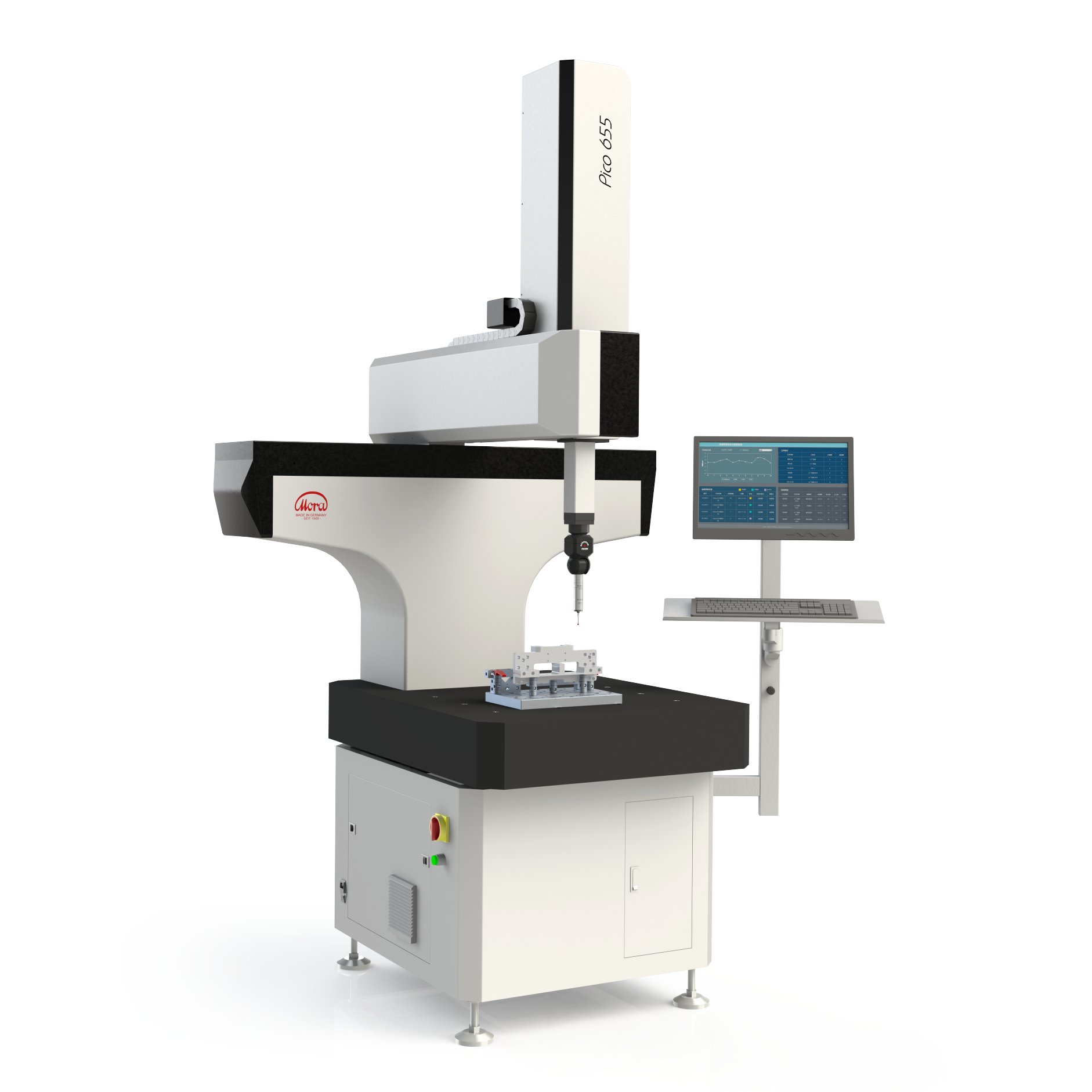

The Pico series 3D coordinate measuring machines (CMMs) feature an open-frame design for effortless workpiece loading/unloading and operation. The worktable is constructed from high-quality granite, offering strong load-bearing capacity, stability, and reliability.
● Fully automatic measurement with three-axis CNC closed-loop control system;
● Grade 00 granite base and column for quick setup and high stability;
● Integrated design of bottom support, electrical control system, and computer stand to maximize space efficiency;
● Bottom roller design for easy short-distance mobility;
● High-precision linear guides and ball screw drive systems on all three axes for smooth and accurate motion;
● Optical encoder reading system for high resolution and precise positioning;
● Integrated real-time temperature compensation to ensure consistent accuracy.
| model | X | Y | Z |
| Pico 655 | 600 | 500 | 500 |
| Pico 955 | 900 | 500 | 500 |
Accuracy: 3.8+L/300μm
-
