GP Series Gear Measuring Centers
Product Overview
The GP series are cost-effective gear measuring centers with balanced configurations, exceptional value, stable precision, and reliable performance—ideal for high-volume, rapid measurement in production environments.
Key Parameters and Technical Specifications
| model | 30 | 45 | 65 | 80 | 100 | 120 | |
| Measurable modulus range | 0.5～10 | 0.5～15 | 0.5～20 | 0.5～20 | 0.5～30 | 0.5～40 | |
| Maximum outer diameter of workpiece (mm) | 300 | 450 | 650 | 800 | 1000 | 1200 | |
| Top and bottom distance (mm) | 10～500 | 10～800 | 10～1000 | 10～1000 | 10～1000 | 10～1000 | |
| Vertical measuring range(mm) | )400 | 400 | 600 | 600 | 800 | 800 | |
| Measurable helix angle° | 0～90 | ||||||
| Maximum workpiece weight kg | 100 | 300 | 500 | 1000 | 2000 | 3000 | |
| Instrument dimensions(mm) | X | 1800 | 1800 | 2400 | 2500 | 2900 | 3000 |
| Y | 1300 | 1300 | 1600 | 1600 | 2400 | 2400 | |
| Z | 2100 | 2400 | 2400 | 2500 | 3000 | 3000 | |
| Gas consumptionL/min | 50 | 50 | 55 | 55 | 60 | 60 | |
| Instrument weightkg | 1500 | 2800 | 4000 | 4500 | 9500 | 10500 | |
| Environmental requirements | Compressed air | Gas supply pressure 6~8bar, working pressure 4.5~5bar | |||||
| Temperature and humidity | 20土2℃、<0.5℃/H、<0.5℃/M | ||||||
| power supply | AC220V、50/60Hz、20KVA | ||||||
Related Products
-
GP Series Gear Measuring CentersThe GP series are cost-effective gear measuring centers with balanced configurations, exceptional value, stable precision, and reliable performance—ideal for high-volume, rapid measurement in production environments.
-
GWS Workshop SeriesThe GWS-PLUS20 is a workshop-type gear measuring center offering high measurement precision, fast speed, and simple operation. Equipped with workpiece clamping eccentricity correction to enable quick setup. -

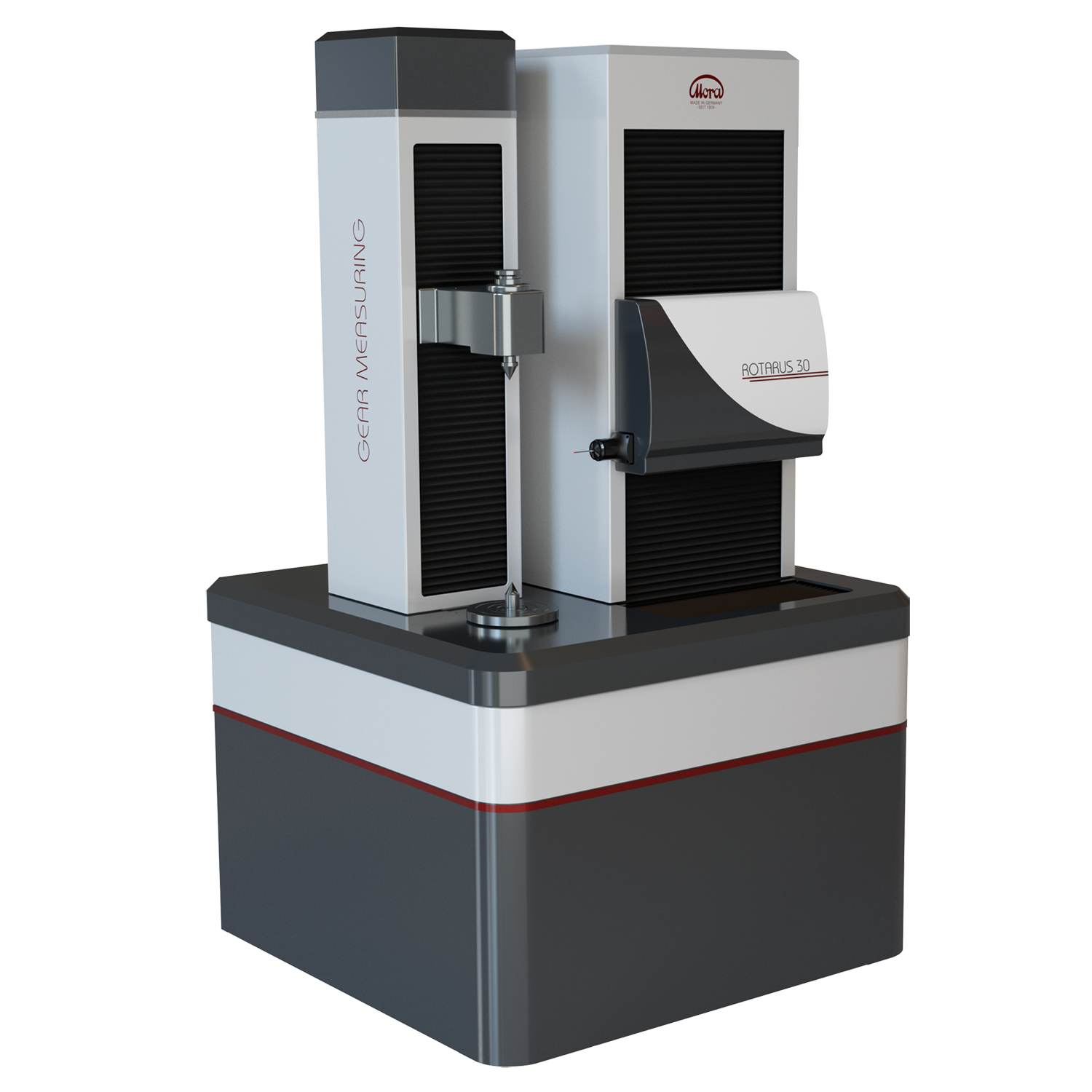

Rotarus Series / G SeriesThe Rotarus series, AEH’s new-generation gear measuring instruments, ature advanced design concepts and incorporate cutting-edge German technology. They delivery industry-leading precision and stability, both domestically and internationally, with a robust structure and easy maintenance. These machinese are especially suited for professional gear inspection departments, metrology laboratories, and research institutions.
