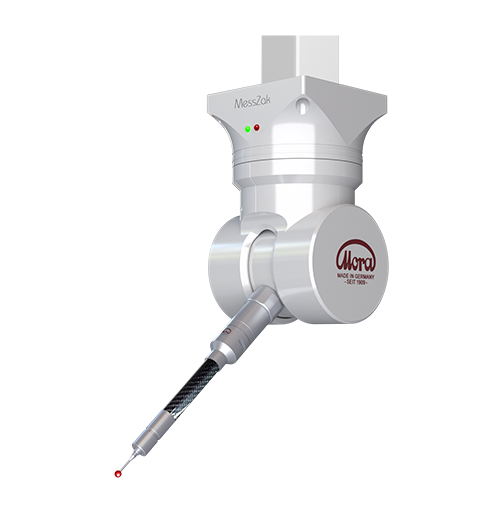

MESS-ZAK is an advanced five-axis probe head independently developed and designed by MORA, featuring high efficiency, high torque and high load characteristics.
Five-axis probe inference correction:
The "inference correction" technology developed for MESS-ZAK can quickly determine the direction and position of the probe head, so that subsequent measurements can be completed at any angle.
"Inference correction technology" can complete the angle of the probe head and the probe position at one time;
It can also correct the probe according to the special angle of the workpiece to improve the measurement accuracy;
It realizes the rapid application of the stepless probe, and the subsequent measurement can be used at any angle;
It greatly reduces the time of probe calibration and improves work efficiency.
Configuration instructions:
-
AH-SD3 3D Digital Scanning ProbeThe AH-SD3 is a high-precision, large-range 3D scanning probe capable of linear and horizontal movement across all axes. It employs high-precision digital sensors on all three axes, offering a large measurement range and strong anti-interference capabilities. Its gravity self-balancing stylus structure ensures continuous data collection even with extended styli, while its robust design delivers outstanding load capacity. The probe’s mounting interface features a dual magnetic stabilization protection system for easy clamping, reliable collision protection, and durability. Its rugged construction withstands minor impacts. -
TD200 Series Multi-Force Probe SystemThe TD200 Series is an ultra-compact probe system with modular exchange capabilities. Utilizing a strain gauge mechanism, it delivers longer service life and higher precision compared to mechanical touch-trigger probes. -
MV ProbeThe MV optical probe adopts an integrated design. The probe integrates high-resolution color industrial CCD, fixed-magnification telecentric lens, LED ring light, etc., which can excellently complete image measurement work.
