● Incorporates patented technologies to enhance overall performance, including:
Precision "L"-beam technology
Air bearing technology (Patent ZL200710017322.7)
X-axis rigidity enhancement technology (Patent ZL201220136748.0)
Belt tension relief technology (Patent ZL201220247838.7)
Temperature display technology (Patent ZL201220506263.6).
● Uses LongLength PowerChina synchronous timing belts with Kevlar fiber reinforcement for flexibility and tensile strength, and involute tooth profiles for smooth transmission.
● Z-axis balancing employs a rod-type pneumatic cylinder, offering higher safety and reliability compared to rope-type designs.
● Lightweight aluminum alloy protective enclosure improves dynamic performance and eco-friendliness.
● Proven reliability and superior technical performance through years of user feedback and iterative improvements.
| Standard Model | Measuring range(mm) | Dimensions (mm) | Resolution(μm) | Detection error R(μm) | Indication error E (μm) |
Workbench | Maximum load-bearing capacity | Machine weight(kg) | |||||
| Dx | Dy | Dz | Lx | Ly | Lz | ||||||||

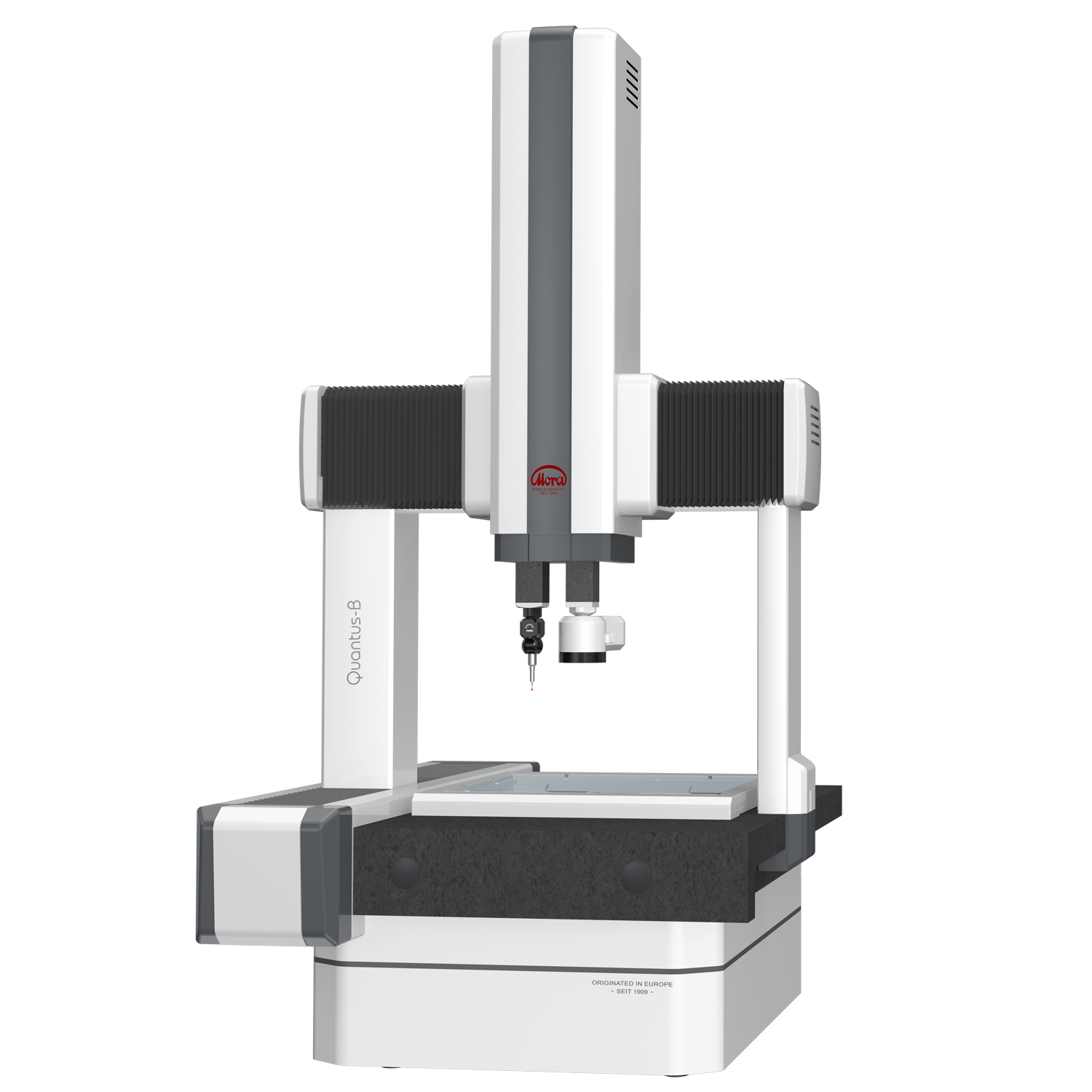

| Quantus-B 575 | 500 | 700 | 500 | 1480 | 1720 | 2640 | From 0.05 | 1.7 | 1.7+L/300 | 800 | 1500 | ||
| Quantus-B 7107 | 700 | 1000 | 700 | 1680 | 2020 | 3040 | From 0.05 | 1.9 | 1.9+L/300 | 1000 | 2000 | ||
| Quantus-B 10128 | 1000 | 1200 | 800 | 2180 | 2380 | 3325 | From 0.05 | 2.3 | 2.3+L/300 | 1500 | 3350 | ||
| Quantus-B 121510 | 1200 | 1500 | 1000 | 2380 | 2680 | 3725 | From 0.05 | 2.7 | 2.7+L/300 | 2000 | 4350 | ||
