Five-axis light milling technology is primarily used in modern industrial design to quickly mill and carve lightweight materials, bringing designers' concepts to life in minimal time. Combined with reverse engineering measurement technology, it efficiently converts design modifications into digital models, drastically shortening the design cycle and becoming indispensable in modern industrial design.

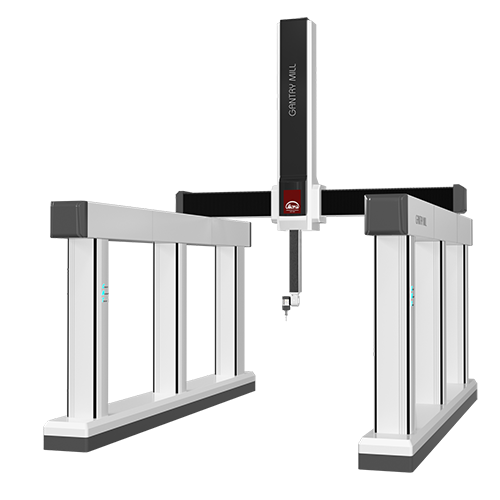

● The Gantry Mill offers high stability and rigidity to meet specific industry needs in design and model construction. The gantry structure, combined with a powerful dual-axis milling head, completes model processing in minimal time. It is suitable for milling clay, 代木 (wood substitute), and soft/hard foams. Diverse milling heads and powerful digital measurement/milling software packages make it a universal center for design or model manufacturing;
● Milling spindle with collet, max diameter ø20mm;
● Milling spindle with quick-change system.
| Three-axis travel | Installation | Single axis positioning accuracy | Milling accuracy | Working Mode | Running speed |
|
X:4000-Any Y: 1200-2000 (single arm) 2200-3800 (double arms) Z：2000-4000 |
Horizontal | ≤0.08mm | ±0.2mm | 3+2/5轴 | 48000mm/min |
-
