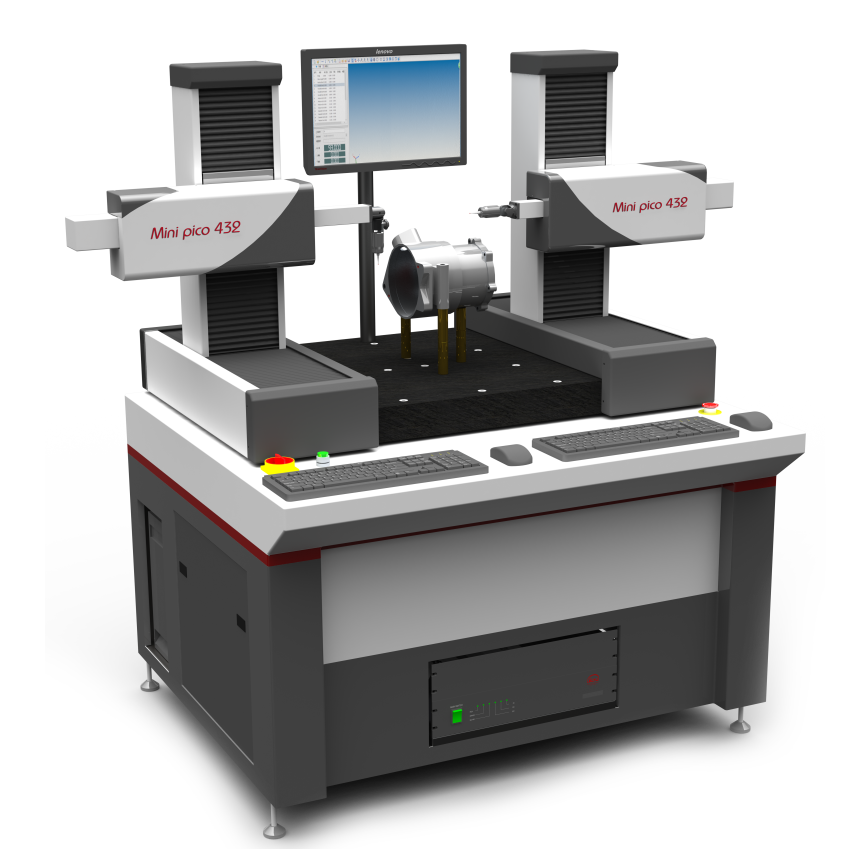

The Mini Pico offers two structural options: vertical single cantilever and double cantilever symmetric layout. As a versatile shop-floor measuring machine, it eliminates the need for an air supply, commonly required by traditional CMMs. It is easy to move and install, with high measurement efficiency. Equipped with temperature compensation system and dust-resistant linear guides, it maintains relative accuracy in environments with large temperature gradients or harsh production sites. It is fully capable of measuring workpiece geometric tolerances. Widely used in aerospace, instrumentation, and mechanical processing industries, it is favored for its low cost and simple operation.
● Rigid, lightweight cantilever structure with compact design, high rigidity, and excellent motion performance;
● High-precision linear guides paired with precision ball screw drives for smooth and reliable operation;
● Precision optical encoder system for accurate measurements;
● Integrated electrical cabinet for compactness and ease of operation;
● Standard trigger probe with optional laser sensor attachments;
● No air supply required—plug-and-play. Ideal for in-line part inspection with unobstructed
| model | X | Y | Z |
| Pico 423 | 400 | 200 | 300 |
Accuracy: 4.5+L/200μm
-
Mini PicoThe Mini Pico offers two structural options: vertical single cantilever and double cantilever symmetric layout. As a versatile shop-floor measuring machine, it eliminates the need for an air supply, commonly required by traditional CMMs. It is easy to move and install, with high measurement efficiency. Equipped with temperature compensation system and dust-resistant linear guides, it maintains relative accuracy in environments with large temperature gradients or harsh production sites. It is fully capable of measuring workpiece geometric tolerances. Widely used in aerospace, instrumentation, and mechanical processing industries, it is favored for its low cost and simple operation.
-
PicoThe Pico series 3D coordinate measuring machines (CMMs) feature an open-frame design for effortless workpiece loading/unloading and operation. The worktable is constructed from high-quality granite, offering strong load-bearing capacity, stability, and reliability.
