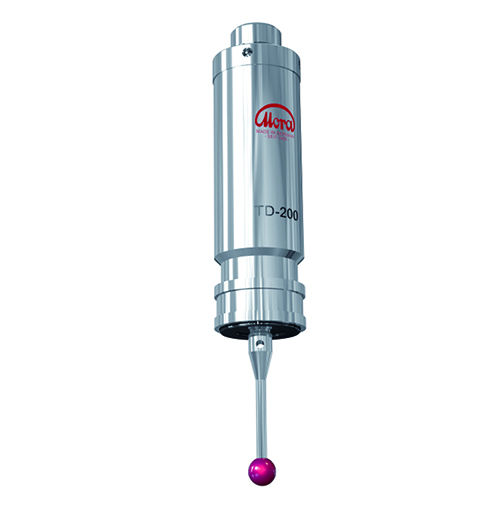

TD200 Series Multi-Force Probe System
Product Overview
The TD200 Series is an ultra-compact probe system with modular exchange capabilities. Utilizing a strain gauge mechanism, it delivers longer service life and higher precision compared to mechanical touch-trigger probes.
Key Parameters and Technical Specifications
Strain Gauge Technology: Ensures exceptional repeatability and 3D shape measurement accuracy.
Zero Reset Error: Eliminates positional deviation after triggering.
No Anisotropic Effects: Consistent performance across all directions.
Six-Directional Measurement Capability.
Stylus Measurement Range: Up to 100 mm (with carbon fiber stylus).
Quick-Exchange Probe Modules: Replace modules without recalibrating the probe tip.
Durability: >10 million trigger cycles.
