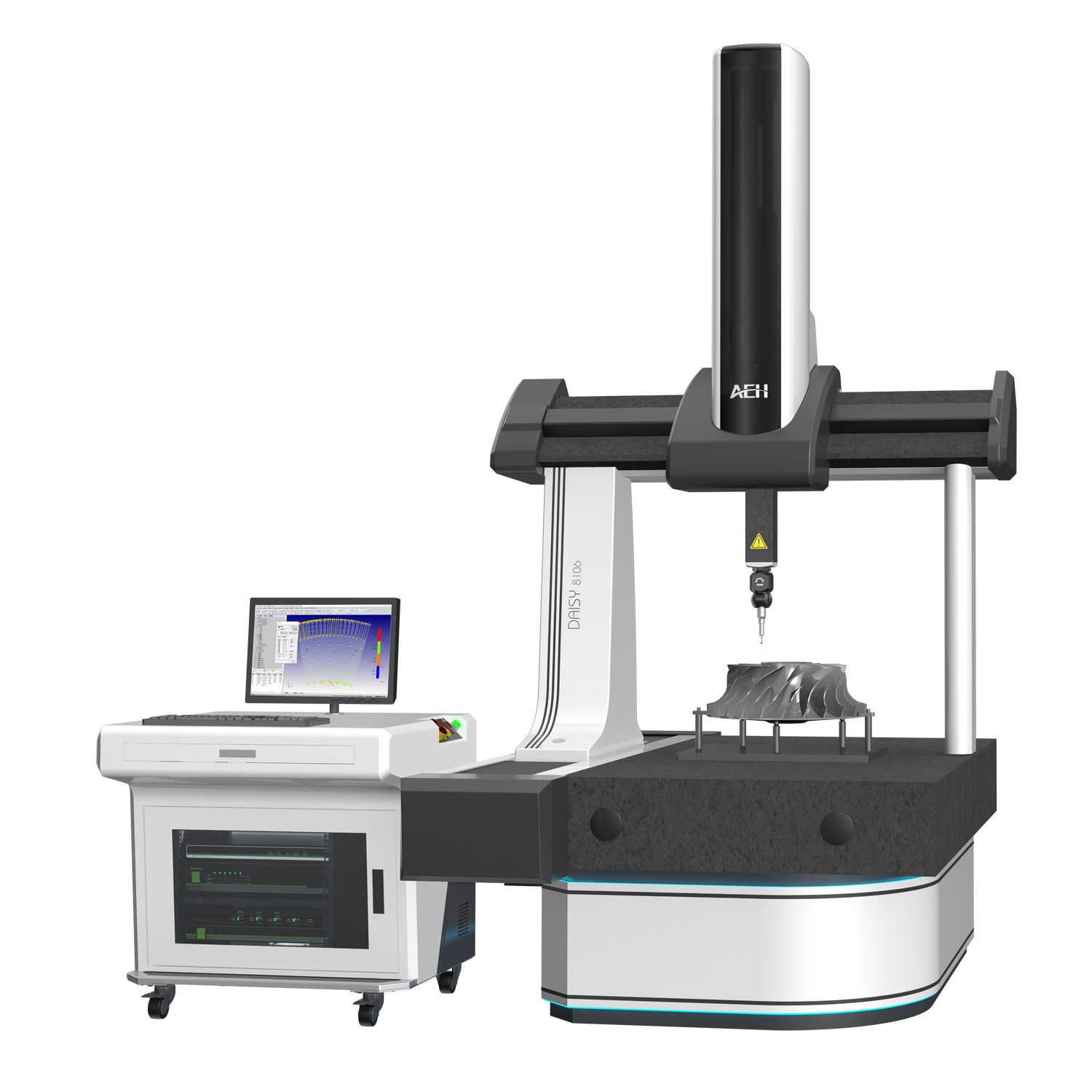

Daisy Series Three-Coordinate Measuring Machines
Product Overview
The Daisy series of measuring machines from AEH offers a cost-effective solution backed by over 20 years of technical expertise. Designed for diverse applications, it is trusted by a broad customer base and recognized in the market for its reliability.
Daisy B (Basic): A basic configuration model that meets standard measurement needs, offering optimal cost-effectiveness.
Daisy P (Pro): A highly customizable series allowing selection of different electrical control systems, probe systems, general-purpose software, and specialized software based on specific measurement requirements.
Key Parameters and Technical Specifications
|
Standard Model
|
Measuring range ( mm)
X/Width×Y/Length×Z/Height
|
Dimensions( mm)
|
Weight (kg) |
Accuracy (μm)
|
Maximum load-bearing capacity of workbench（Kg)
|
|||
|
Lx
|
Ly
|
Lz
|
Detection error（μm）
|
Indication error（μm）
|
||||
|
Daisy564
|
500×600×400
|
1050
|
1420
|
2220
|
700 |
2.2
|
2.2+L/300
|
500
|
|
Daisy686
|
600×800×600
|
1356
|
1940
|
2710
|
1200 |
2.4
|
2.4+L/300
|
800
|
|
Daisy8106
|
800×1000×600 |
1556
|
2140
|
2710
|
1600 |
2.5
|
2.5+L/300 100
|
1000 |
|
Daisy8156
|
800×1500×600 |
2540
|
1900 |
2.9
|
2.9+L/300
|
1200
|
||
|
Daisy10128
|
1000×1200×800 |
1847
|
2380
|
3215
|
2800 |
1500
|
||
|
Daisy10158
|
1000×1500×800 |
2680
|
3200 |
1800
|
||||
|
Daisy10208
|
1000×2000×800 |
3180
|
3800 |
2000
|
||||
|
Daisy10258
|
1000×2500×800 |
3900
|
4400 |
2100
|
||||
|
Daisy121510
|
1200×1500×1000 |
2047
|
2850
|
3615
|
3600 |
3.6
|
3.6+L/300
|
2200
|
|
Daisy122010
|
1200×2000×1000 |
3400
|
4200 |
2200
|
||||
|
Daisy122510
|
1200×2500×1000 |
3900
|
5200 |
2300
|
||||
|
Daisy123010
|
1200×3000×1000
|
4400
|
6200 |
2500
|
||||
After-sales service
Provide professional and efficient after-sales service to ensure stable operation of equipment and customer satisfaction
