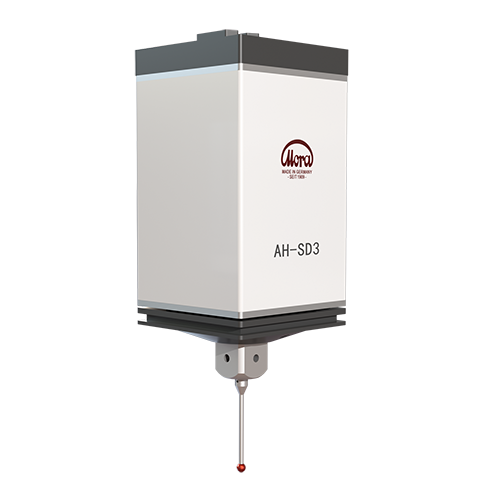

AH-SD3 3D Digital Scanning Probe
Product Overview
The AH-SD3 is a high-precision, large-range 3D scanning probe capable of linear and horizontal movement across all axes. It employs high-precision digital sensors on all three axes, offering a large measurement range and strong anti-interference capabilities. Its gravity self-balancing stylus structure ensures continuous data collection even with extended styli, while its robust design delivers outstanding load capacity. The probe’s mounting interface features a dual magnetic stabilization protection system for easy clamping, reliable collision protection, and durability. Its rugged construction withstands minor impacts.
Key Parameters and Technical Specifications
| Type | Fixed, contact-based high-speed 3D scanning probe |
| Probe Travel | Three axis ±2.5㎜ |
| Resolution | 0.1μm |
| Force Coefficient | 1.5N/㎜ |
| Probe | Stylus Thread: M5 |
| Max. Stylus Length: 500 mm | |
| Max. Stylus Weight: 300 g | |
| Mounting Method | Spindle face mounting |
| Orientation | Vertical operation |
| Electrical Connection | 15-pin DB connector |
| Status Indicator | 1 LED |
| Operating Temperature | +10°C to +40°C |
| Storage Temperature | -10°C to +50°C |
| Service Life | ≥10,000 hours |
| Dimensions | 80 mm × 80 mm × 175 mm |
| Weight | 960 g |

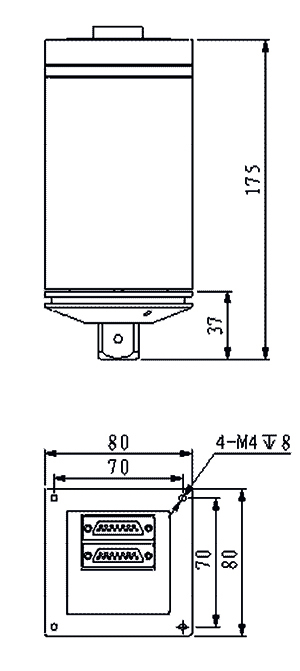

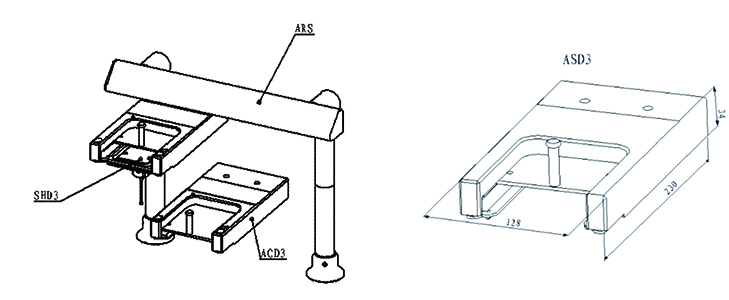

| Replacement Options | ACD3 exchange module, ARS holderDimensions reference diagram |
