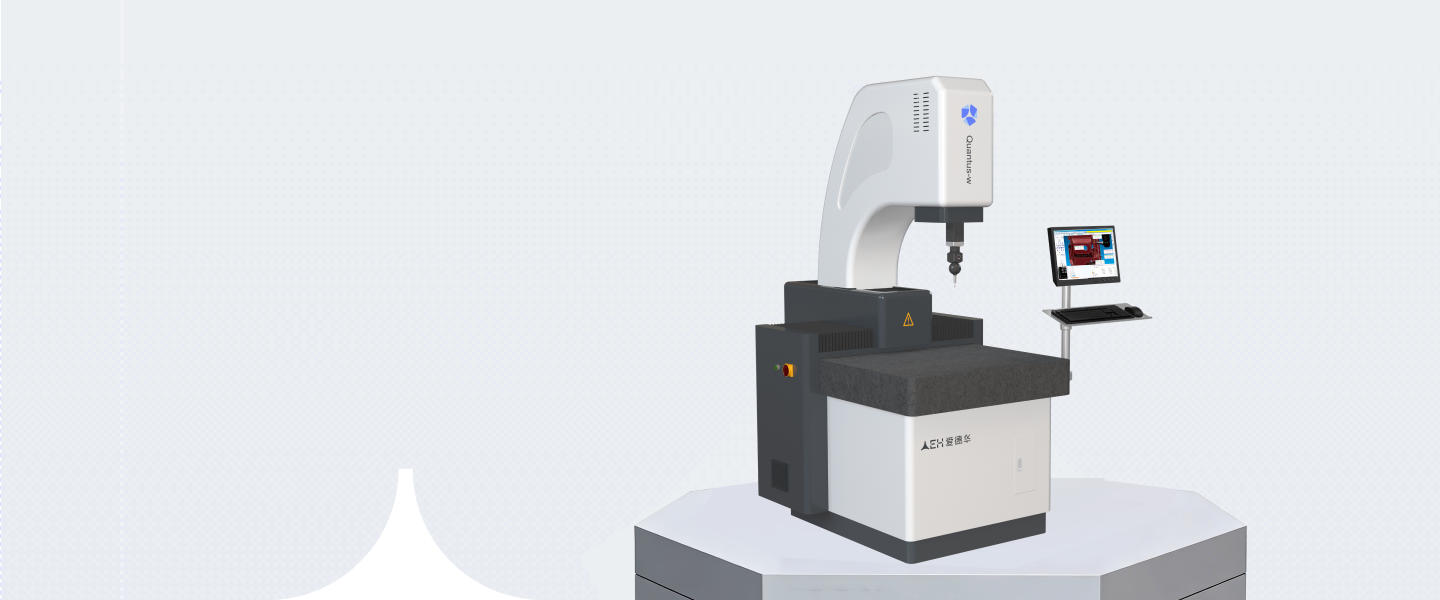

Quantus-W Series
The Quantus-W Series features an integrated structural design that combines contact and non-contact measurement capabilities. Its removable tempered glass worktable and spacious operating area enhance usability and flexibility, while temperature and geometric error correction modules ensure measurement accuracy in shop floor environments — making it ideal for on-site inspection requirements.
Key Features
- Integrated design incorporating the mechanical body, control system, and computer
- Precision linear guideways with high rigidity
- Precision ball screw drive system for excellent transmission rigidity
- Compact structure with Z-axis travel extending beyond the worktable, providing a wide and open operating space
- Integrated contact and non-contact measurement to meet diverse measurement requirements
- Latest reflective film technology — no backlight required, fully supporting non-contact measurement
- Removable glass worktable: when measuring large-volume parts with contact probing, the glass table can be removed to fixture parts directly on the granite base
- Tempered glass worktable with high load-bearing capacity
- Temperature correction module and 21-item geometric error correction module to guarantee measurement accuracy
- Adapted for harsh shop floor environments with easy mobility, providing convenience and flexibility for on-site use
- Compatible with industrial robotic arms for automated part loading and unloading
- Replaces air-bearing guideways, extending equipment service life while reducing maintenance costs
